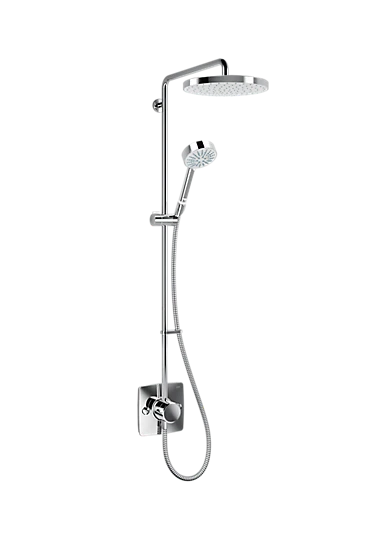

Mira Beacon Dual

See the light

Innovative Mira HydroGlo™ technology indicator lights up when your shower reaches your desired temperature. No more guessing. Less wasted water.

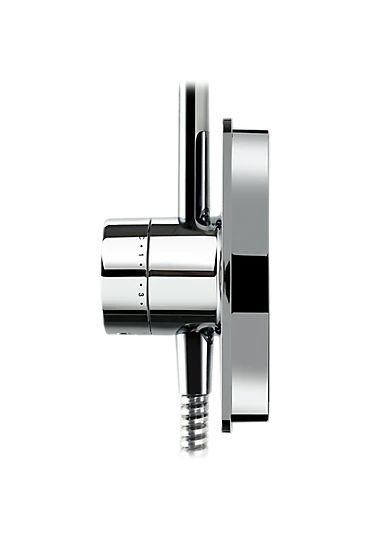

The front-of-tile valve that looks built-in

An ultra-sleek, flush valve design makes for a minimal, built-in look – without any complicated in-the-wall installation.

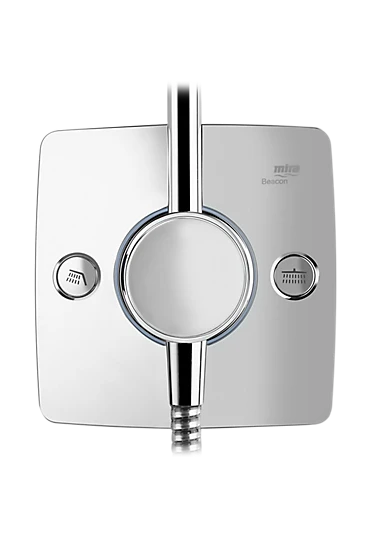

Tip top control

The perfect shower, at your fingertips. Thanks to a super simple temperature dial  and easy-to-use push buttons.

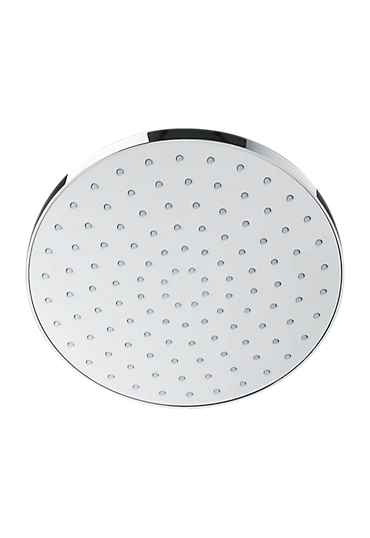

Pure indulgence

Double up your shower experience with two generous showerheads. Use both together for spa-worthy moments.

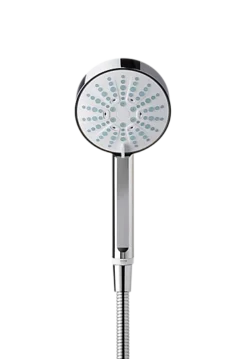

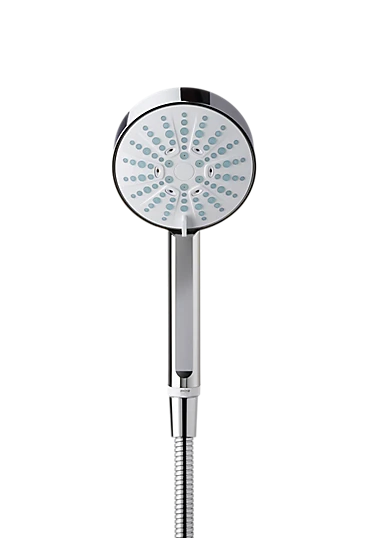

Switch it up

Choose the spray that’s unique to you – take your pick from four diverse spray modes on the wide 110mm handset.

Powerful performance

Works with any system, at any pressure. With guaranteed performance thanks to Mira Magni-flo™ technology.

All aligned

With 50mm pipe centres, Mira Beacon enables a seamless retrofit for Mira Agile and Mira Pronta that skips the first fix stage – as well as offering a great option for new bathroom installs.

Temperature and flow control

• Thermostatic technology
• Flow actuation: Push button

Installation

• Water entry points: Rear only
• Inlet connections: Direct 15mm push fit connections
• Outlet connections: ½” BSP Male
• Reversed inlets supported: No = hot left, cold right only

Supply Conditions (hot and cold)

• Cold water range: 1°C to 25°C
• Inlet connections: Direct 15mm push fit connections
• Outlet connections: ½” BSP Male
• Reversed inlets supported: No = hot left, cold right only

Performance

• Cold water range: 1°C to 25°C
• Hot water range: Min 55°C; 60°C – 65°C (recommended)
• Minimum maintained pressure (gas water heater) : 1 bar (10 metre head)
• Minimum maintained pressure (gravity system) : 0.1 bar (1 metre head)
• Maximum maintained pressure: 5.0 bar (50 metre head)

Safety Features

• Flow rate (at handset): 7.6 l/min at 0.5 bar, (at deluge): 9.9 l/min
• Flow regulator: 9 l/min (supplied with product – x2)
• Temperature stability: ± 2°C
• Automatic shutdown: Shutdown within 2 secs
• Factory set to safe max temp

Product Approvals

• KIWA Approved
• WRAS Approved
• TMV2 Approved
