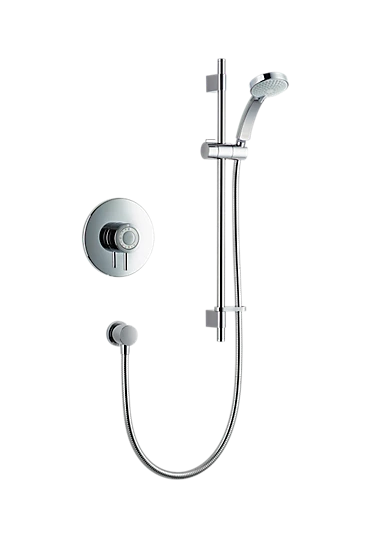

Mira Element

Easy to use

Single control for flow and temperature.

Powerful performance

Mira Magni-flo™ technology delivers up to 3x more flow, even at low pressure.

Safer showering

Thermostatic temperature control makes showering safer for all the family.

Greater coverage

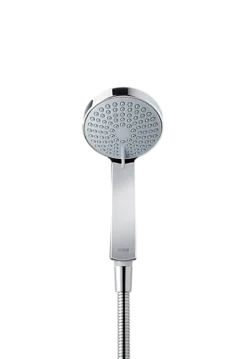

9cm showerhead with rub-clean nozzles for easy cleaning.

Ultimate compatibility

Works on all systems and pressures, even at low pressure.

Temperature control

• Control type: Thermostatic
• Thermostatic shutdown: Within 2 seconds
• Adjustable maximum temperature for on-site conditions. Factory set at 41°C

Installation Information

• Water entry points: Rising, falling or rear
• Inlet connections: 15mm compression
• Outlet connections: ½” BSP Male Flat Face or 15mm compression
• Reversed inlets support: Yes
• Pipe Centres: 153mm

Supply Conditions (hot and cold)

• Cold water range: Up to 25°C
• Hot water range: 60°C-65°C
• Minimum maintained pressure: 0.1 bar (1 metre head)
• Maximum maintained pressure: 5.0 bar (50 meter head)
• Maximum static pressure: 10.0 bar (100 metre head)

Benefits for your customer

• One single control for on/off and temperature
• TMV2 Approved for the ultimate in comfortable showering
• Four spray 9cm showerhead

Easy to fit & Maintain

• Quickly and easily fits onto reversed inlet supplies
• Large, long-life filters
• Replaceable cartridge
