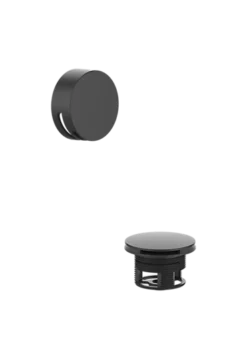

Mira Evoco Dual Bathfill

Glo with the flow

Innovative Mira HydroGlo™ technology illuminates the controls when your perfect temperature is reached. Switched-on design, no electricity or batteries needed.

Ultra-sleek, fully-concealed

Create a refined, sophisticated look and feel. With minimalist controls and a choice of three premium finishes: Chrome, Matt Black and Brushed Nickel.

Be spoilt for choice

Choose the overhead shower for drenching refreshment or a luxurious bath for the ultimate relaxation.

Powerful performance

Mira MagniFlo™ technology provides consistent power to both shower outlets at the same time. For invigorating performance, even at low pressures.

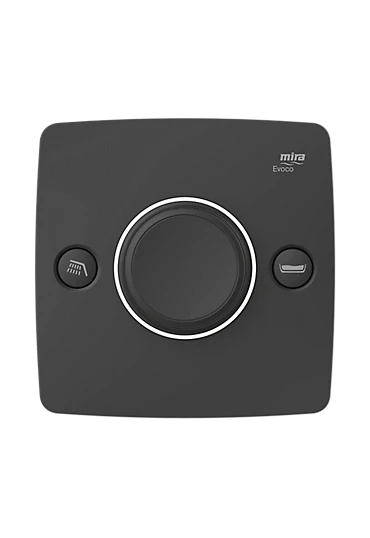

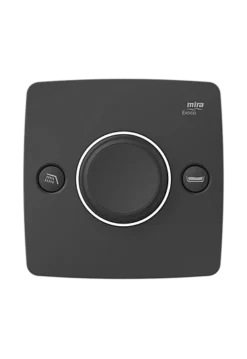

Precise, push-button controls

The perfect shower, at your fingertips. Thanks to push-button activation and our super simple temperature dial

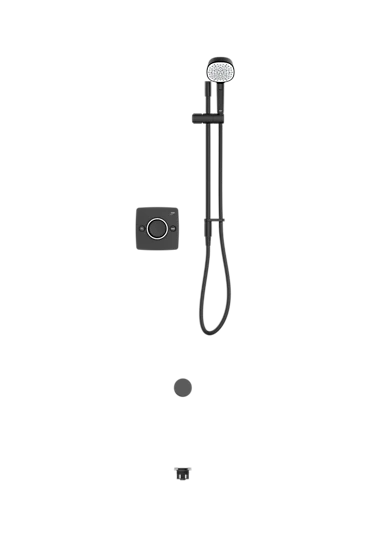

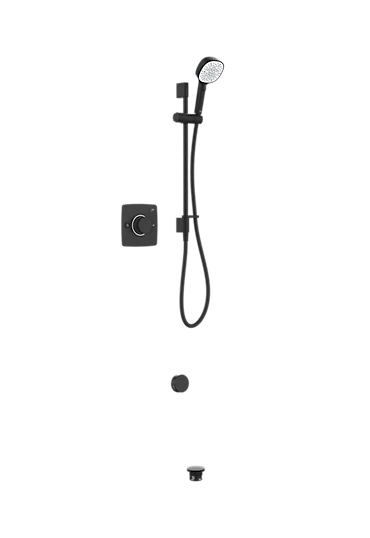

One box. Many options.

Everything you need for the perfect shower or bath-fill installation, all in one box. No need for separate purchases.

Temperature and flow control

• Thermostatic technology
• Flow actuation: Push button

Installation

• Water entry points: Bottom only
• Inlet connections: Direct 15mm push fit connections
• Outlet connections: 15mm copper pipework
• Reversed inlets supported: No = hot left, cold right only

Supply Conditions (hot and cold)

• Cold water range: 1°C to 25°C
• Hot water range: Min 55°C; 60°C – 65°C (recommended)
• Minimum maintained pressure (gas water heater) 1 bar
• Minimum maintained pressure (gravity system) : 0.1 bar (1 metre head)
• Maximum maintained pressure: 5.0 bar (50 metre head)

Performance

• Flow rate (at handset): 8.6 l/min at 0.5bar
• Flow regulator: 9 l/min (supplied with product – x2)
• Temperature stability: ± 2°C

Safety Features

• Automatic shutdown: Shutdown within 2 seconds
• Factory set to safe max temp
• Adjustable maximum temperature for on-site conditions

Product Approvals

• WRAS Approved
• TMV2 Approved
