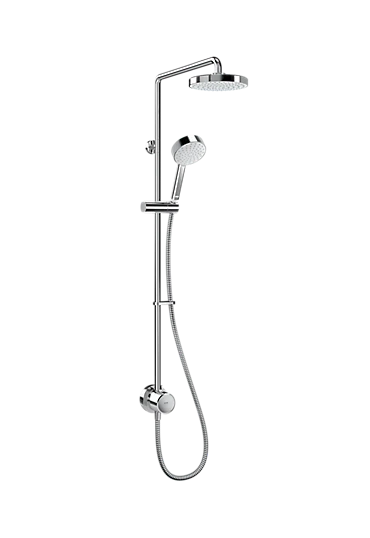

Mira Minimal Dual

Shower, safer

Precise thermostatic control and a maximum temperature stop maintain stable water temperature – meaning safer showering, for the whole family.

More style, more space

An ultra-compact minimalist design creates a smaller footprint than traditional bar valves. So you can enjoy more space in your shower.

Smooth move

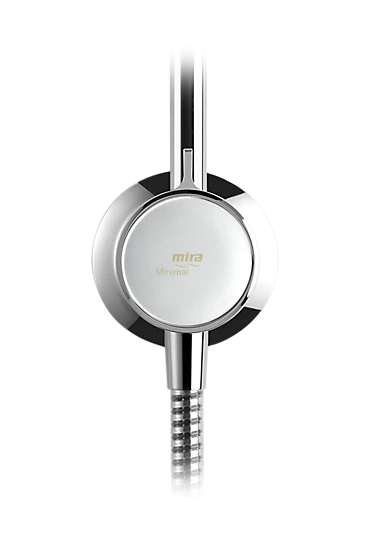

With our innovative single control, you can fine-tune your temperature quickly and easily – all from one smooth dial.

Simple but effective

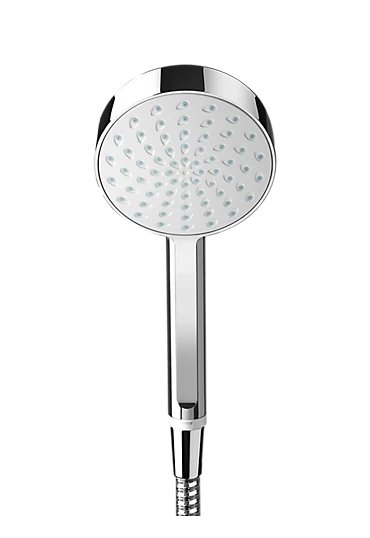

The effortless single spray Mira Beat handset offers style and simplicity – with a wide 110mm spray head delivering a powerful, invigorating flow.

In full flow

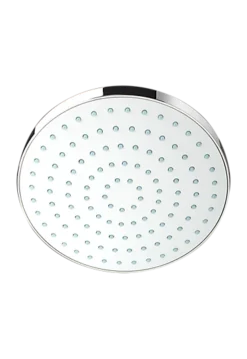

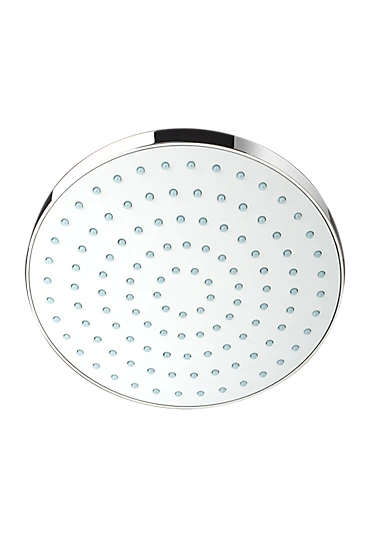

Enjoy a relaxing  stream of water from above by switching to the generous 200mm deluge head or both showering outlets – for those moments when only luxury will do.

Feel the power

Mira Magni-flo™ technology delivers up to 3x more water flow than similar mixer showers – even at low pressure. For powerful invigoration, every day.

Fits your system

Mira CoolShield™ technology stops heat transferring to exposed surfaces of the shower. Which means Mira Minimal is always safe to touch.

Temperature and flow control

• Thermostatic technology
• Single sequential cartridge

Installation

• Water entry points: Rear only
• Inlet connections: Direct 15mm push fit connections
• Outlet connections: ½” BSP Male
• Reversed inlets supported: No = hot left, cold right only

Supply Conditions (hot and cold)

• Cold water range: 1°C to 25°C
• Hot water range: Min 55°C; 60°C – 65°C (recommended)
• Minimum maintained pressure (gas water heater) 1 bar
• Minimum maintained pressure (gravity system) : 0.1 bar (1 metre head)
• Maximum maintained pressure: 5.0 bar (50 metre head)

Performance

• Flow rate (at handset): 9 l/min at 0.5 bar, (at deluge): 10.5 l/min
• Flow regulator: 6 l/min (supplied with product – x2)
• Temperature stability: ± 2°C

Safety Features

• Automatic shutdown: Shutdown within 2 seconds
• Factory set to safe max temp
• Adjustable maximum temperature for on-site conditions

Product Approvals

• KIWA Approved
• WRAS Approved
• TMV2 Approved
