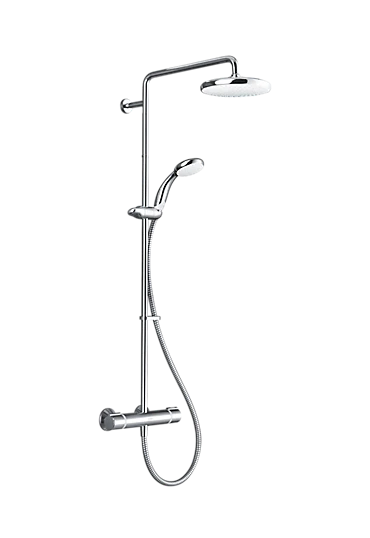

Mira Reflex

Powerful performance

Mira Magni-flo™ technology delivers up to 3x more flow, even at low pressure.

Easy to use

Separate temperature and flow controls to fine tune your perfect shower.

Safer showering

Thermostatic temperature control and maximum temperature stop, make showering safer for all the family.

Unique spray experiences

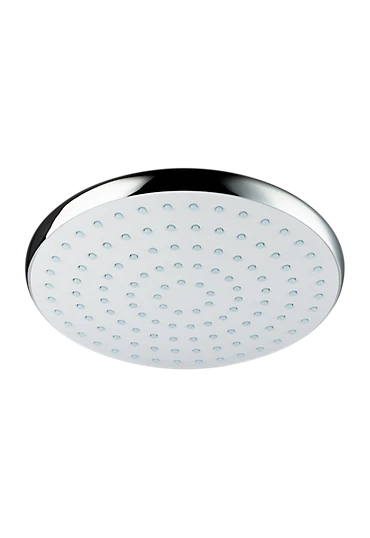

Featuring large 200mm deluge showerhead and 90mm showerhead for a greater showering experience, and rub-clean nozzles for easy cleaning.

Double the experience

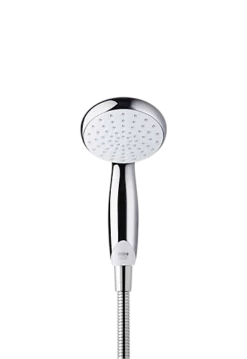

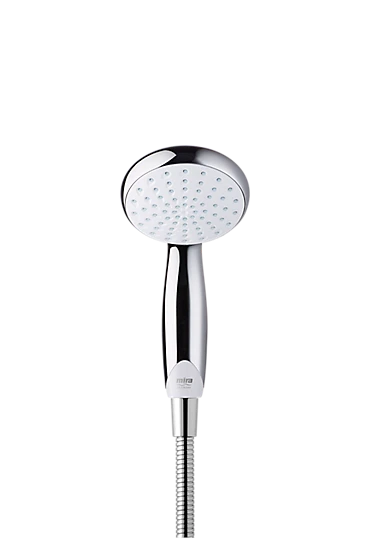

Easily divert between the deluge showerhead and the hand held shower.

Ultimate compatibility

Works on all systems and pressures, even at low pressure.

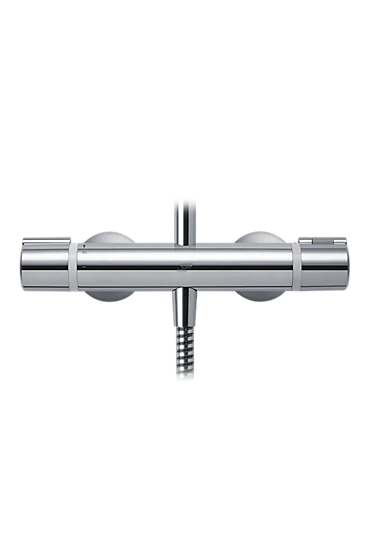

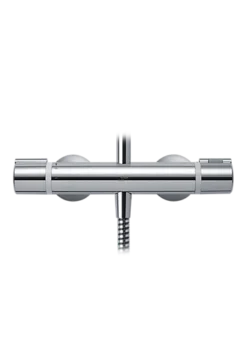

Temperature control

• Control type: Thermostatic
• Thermostatic shutdown: Within 2 seconds
• Adjustable maximum temperature for on-site conditions
• Maximum temperature stop of 45°C for added safety, can be overidden

Installer Product Features

• Water entry points: Rear only
• Inlet connections: 1/2” BSP to pipework, 3/4” BSP to shower unit
• Outlet connections: 1/2” BSP Male
• Reversed inlets supported: No – hot left, cold right only
• Pipe centres: 150mm

Benefits for your customer

• Hot water range: 60°C – 65°C
• Minimum maintained pressure: 0.1 bar (1 meter head)
• Maximum maintained pressure: 5.0 bar (50 meter head)
• Maximum static pressure: 10.0 bar (100 meter head)

Easy to fit & Maintain

• Large, long-life filters
• Replaceable cartridge
