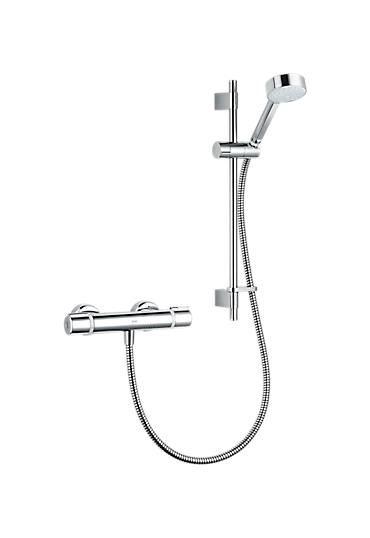

Mira Relate

More is more

Mira Magni-flo™ technology delivers up to 3x more flow, even at low pressure.

Easy to use

Separate temperature and flow controls to fine tune your perfect shower.

Safer showering

Thermostatic temperature control and maximum temperature stop, make showering safer for all the family.

Greater coverage

90mm showerhead for a greater showering experience, and rub-clean nozzles for easy cleaning.

Flexible fittings

Adjustable slide bar helps to match grout lines and cover over previous fittings.

Ultimate compatibility

Works on all systems and pressures, even at low pressure.

Temperature control

• Control type: Thermostatic
• Thermostatic shutdown: Within 2 seconds
• Adjustable maximum temperature for on-site conditions

Installer Product Features

• Water entry points: Rear only
• Inlet connections: 1/2” BSP to pipework, 3/4” BSP to shower unit
• Outlet connections: 1/2” BSP Male
• Reversed inlets supported: No – hot left, cold right only
• Adjustable pipe centres: 150 ± 24mm

Benefits for your customer

• Hot water range: 60°C – 65°C
• Minimum maintained pressure: 0.1 bar (1 meter head)
• Maximum maintained pressure: 5.0 bar (50 meter head)
• Maximum static pressure: 10.0 bar (100 meter head)

Easy to fit & Maintain

• Large, long-life filters
• Replaceable cartridge
