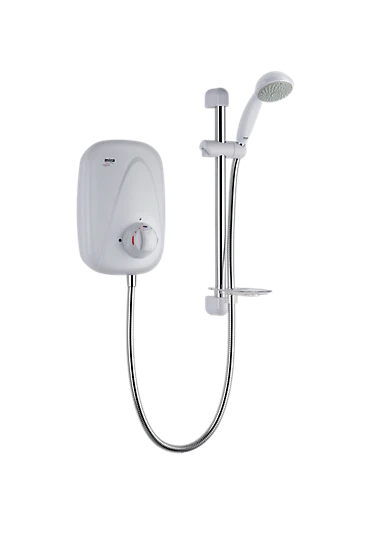

Mira Vigour

Greater control

Separate flow and temperature controls help you fine tune your perfect shower.

Greater coverage

4 spray showerhead with rub-clean nozzles for easy cleaning.

Low pressure solution

Suited to homes with a low pressure water system and plentiful supply of hot water.

Temperature Control

• Control type: Manual
• Phased shutdown
• Factory set to safe max temperature

Installation Information

• Water & Cable entry points: Left (rising, falling & rear)
• Inlet connection: 15mm dual entry push fit
• Outlet connections: 1/2″ BSP male
• Supply Voltage: 230v + 10%
• Supply rating: 3 amp
• Terminal block connections: Maximum 2.5mm²
• Cistern: Minimum 230 litres

Supply Conditions (hot and cold)

• Cold water range: Up to 25°C
• Hot water range: 55°C-65°C
• Minimum maintained pressure: 0.008 bar (80mm head)
• Maximum maintained pressure: 0.5 bar (5 meter head)
• Maximum static pressure: 1.0 bar (10 metre head)

Shower Performance

• Flow rate: Up to 12 litres per minute
• Temperature stability: + 6°C
• 5 spray 9 cm showerhead with rub clean nozzles

Easy to fit & Maintain

• No need to prime
• Removable filters
• Removable check valves

Benefits for your customer

• Separate temperature and flow controls
• Four spray showerhead
